Newton Abbot

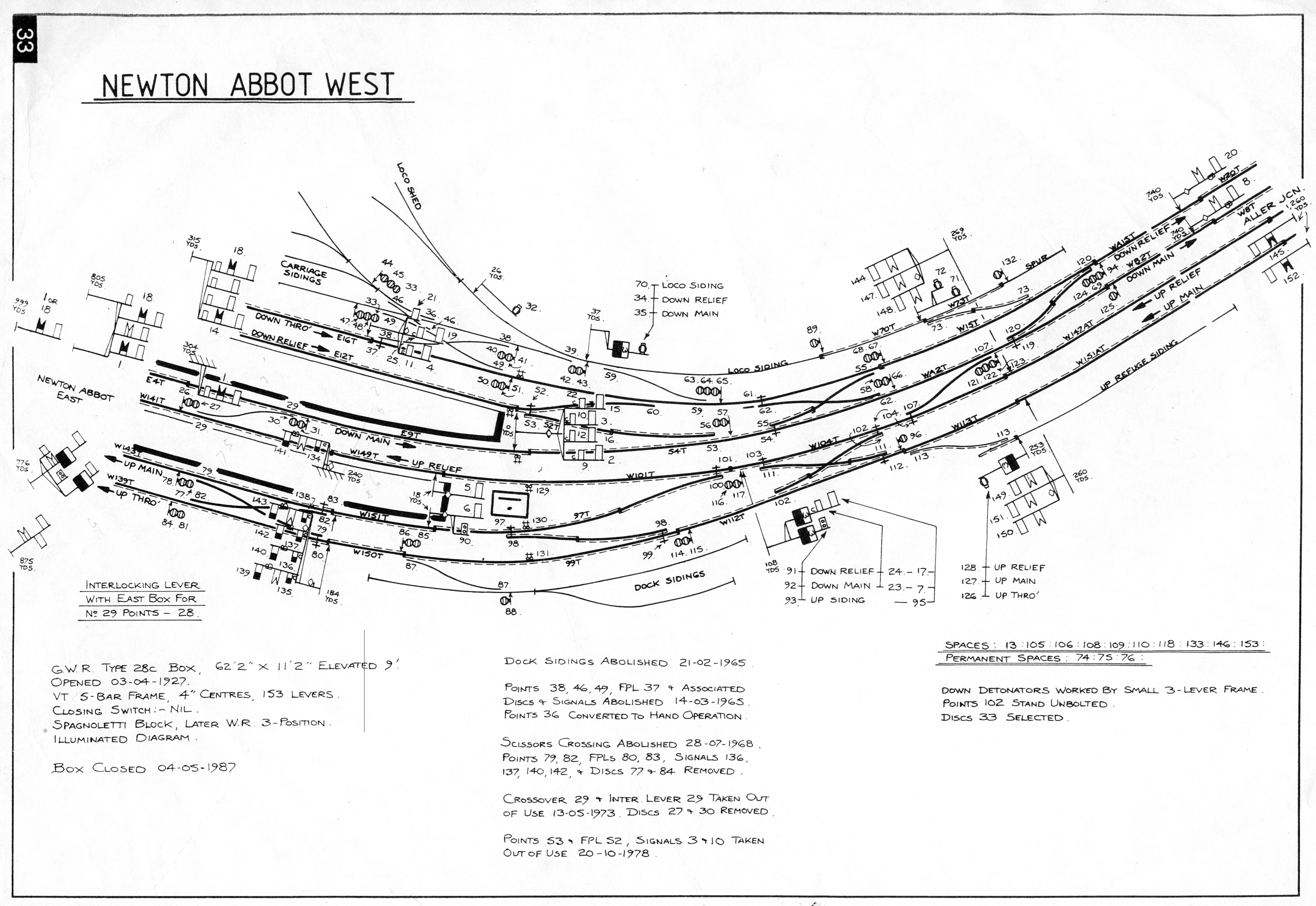

Newton Abbot West Signal Box Lever Leads

104 stands normally in 120B, out 107A

http://www.s-r-s.org.uk/html/gwe/S852-7.pdf

No	Description	Requires
1	Down Main Distants	8 2
2	Down Main Home	119 54
3	Down Relief Home To Down Main	120 54 53 52
4	Down Through Line To Down Main	37 61 62 119
5	Up Relief Down Home	103
6	Up Main Down Home	97 100 103
7	Up Relief Down Starting To Down Main	103 104 107 119
8	Down Main Starting
9	Down Main Home Call On	54 119
10	Down Relief Home To Down Main Call On	52 53 54 119
11	Down Through Home To Down Main Call On	37 61 62 119
12	Down Main Home To Down Relief Call On	54 55
13
14	Down Relief Distant	20 15
15	Down Relief Home	52 60 61
16	Down Main Home To Down Relief	54 55
17	Up Relief Down Starting To Down Relief	103 104 107 119 120
18	Down Through Line To Down Relief Distants	20 19
19	Down Through Line To Down Relief Home	61 37
20	Down Relief Starting	LINE CLEAR
21	Down Through Line Home To Loco Siding	39 38 37
22	Down Relief Home Call On	52 60 61
23	Up Relief Down Starting To Down Main Call On	103 104 107 119
24	Up Relief Down Starting To Down Relief Call On	103 104 107 119 120
25	Down Through Line To Down Relief Calling On	37 61
26	Up Relief To Up Relief Disc	-
27	Up Relief To Down Main Disc	29
28	Interlocking Lever for No 29 Points
29	Up Relief To Down Main Points	28
30	Down Main / Up Relief Crossover	29
31	Down Main To Down Main Disc
32	Loco Shed	-
33	Disc Carriage Lines Starting	39 / OR / 39 36 / OR / 61 59 39 / OR / 61 59 39 36
34	Loco Sidings To Down Relief Starting	61 59
35	Loco Sidings To Down Main Starting	62 61 59
36	No.1 Carriage Siding / Sidings	-
37	FPL for 38 points	-
38	Down Through Line Facing / Loco Sidings	39
39	Loco Sidings / No.1 Carriage Sidings	-
40	Disc For 38	38
41	Carriage Line To Carriage Sidings Disc	39? OR 36 39?
42	Disc For 39	39 40 / OR / 39 41
43	Disc At 39	-
44	Disc For 46	46 49 61 62 119
45	Disc For 46	46 49 61
46	Compound Points	49
47	Carriage Line To Down Main Disc	49 61 62 119
48	Carriage Line To Down Relief Disc	49 61
49	Down Through To Carriage Line Points	-
50	Down Through To Down Through Disc	-
51	Down Through To Carriage Sidings Disc	49 OR 46 49
52	FPL for 53 Points	-
53	Down Relief To Down Main Point	-
54	FPL for 55 Points	-
55	Down Main To Down Relief X O Over	-
56	Down Main To Down Main Disc	-
57	Down Main To Down Relief Disc	53
58	Down Main To Down Main Disc	-
59	Loco Line To Down Relief X Over	-
60	Down Relief To Down Relief Point	-
61	FPL for 62 Points	-
62	Down Relief To Down Main X Over	-
63	Down Relief To Down Relief Disc	60
64	Down Relief To Down Through Disc	-
65	Down Relief To Loco Shed Disc	59
66	Down Main To Down Relief Disc	62
67	Down Relief To Down Relief Disc	-
68	Down Relief To Down Main Disc	55
69	Down Relief To Down Relief Disc	-
70	Carriage Line To Loco Siding	-
71	Loco Siding To Down Relief Disc	73
72	Loco Siding To Spur Disc	-
73	Loco Siding To Down Relief X Over	-
74
75
76
77	Up Main To Up Main Disc	-
78	Up Main To Up Through Disc	79
79	Up Through To Up Main X Over	-
80	FPL for 79	-
81	Disc For 82	97 82
82	Up Main Facing / Up Through Line	-
83	FPL for 82	-
84	Disc At 82B	-
85	Up Through To Up Through Disc	-
86	Disc For 87	87
87	Up Through Line / Up Siding	-
88	Disc For 87	80 87
89	Loco Siding Starting (Disc)	42 /OR/ 43
90	Up Main To Up Main Backing	97 98
91	Up Main To Down Relief Backing	102 104 107 119 120
92	Up Main To Down Main Backing	102 104 107 119
93	Up Main To Up Refuge Backing	96
94	Disc At 120	73
95	Up Relief To Up Refuge Starting	96 103 111
96	Disc For 113	113
97	FPL For 98	-
98	Up Main To Up Through Line Facing / Up Main	-
99	FPL For 98	-
100	Up Relief Facing / Up Main	-
101	FPL For 100	-
102	Up Relief To Up Main X Over	-
103	FPL for 111a	-
104	FPL for 102/107	-
105	Space	-
106	Space	-
107	From Up Relief Facing / Down Main	-
108	Space	-
109	Space	-
110	Space	-
111	Up Main Facing / Up Relief	-
112	FPL for 111B	-
113	Up Main / Up Siding	-
114	Disc At 98	90 99
115	Disc For 98B	83 98 99
116	Disc For 100	83 100 101
117	Disc At 100	101
118		-
119	FPL for 120	-
120	Down Main Facing Down Relief	-
121	Disc For 107	107 104 102 [PUT BACK 104] 114 / OR / 107 104 102 [PUT BACK 104] 115
122	Disc For 107	107 116 / OR / 107 117
123	Disc At 107	50 OR 66
124	Disc For 120	120 121 / OR / 120 122 / OR / 120 123
125	Backing Up Down Main (Disc)	121 / OR / 122 / OR / 123
126	Up Refuge To Up Through	112 113 114
127	Up Refuge To Up Main	112 113 115 / OR / 111 112 113 116
128	Up Refuge To Up Relief	111 112 113 117
129	Up Relief DeTonaTors Off - On	-
130	Up Main DeTonaTors Off - On	-
131	Up Through DeTonaTors Off - On	-
132	Spur To Loco Siding Starting (Disc)	-
133
134	Up Relief Calling On	-
135	Up Through Calling On	80
136	Up Through Line To Up Main Calling On	79 80
137	Up Main To Up Through Line Calling On	82 83
138	Up Main Calling On	83
139	Up Through Line Starting	80 LINE CLEAR
140	Up Through Line To Up Main Starting	79 80 LINE CLEAR
141	Up Relief Starting	LINE CLEAR
142	Up Main To Up Through Line Starting	82 83 LINE CLEAR
143	Up Main Starting	83 LINE CLEAR
144	Up Relief Home	117
145	Up Relief Distant	141 144
146
147	Up Relief To Up Main Home	116
148	Up Relief To Up Through Line Home	104 102 [PUT BACK 104] 114
